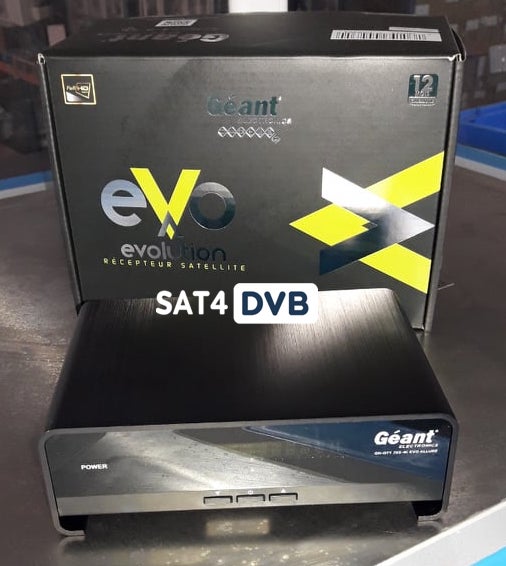

Product Pictures :

ANDROID DVB-S2 + OTT 750 4K EVO

Processor and Memory

Chipset Hi3798MV200

basic frequency 2.0GHz

CPU Cortex A53

GPU Mali450

Flash EMMC5.0: 16GB

SDRAM DDR4 : 2GB

Tuner & Channel

Input impedance: 75

input frequency:950~2150MHz

“Symbol rate:  QPSK 1~45 Mbauds; 8PSK 2~30Mbauds”

Tuner :TH011R2VA

Demodulation: QPSK.8PSK,16APSK,32APSK

Video

H.265 MP@level 5 Main Tier  H.264 BP/MP/HP@level4.2

Video coding provides VBR and CBR model”

Low latency coding

Audio

MPEG L1/L2

Dolby Digital/Dolby Digital Plus Decoder-Converter

Dolby True HD Decoding

DTS HD/DTS M6 Decoding

Dolby Digital/ DTS unvarnished transmission

Dolby ATMOS

AAC-LC,HE AAC V1/V2,APE/FLAC/Ogg/AMR-NB/WB,G.711(u/a),

Dolby MS11,HE-AAC transcoding DD

General Features

Build in USB Wifi

Build in Blue tooth

TF card connector

Support high-speed SATA hard disk

H.265/HEVC Main/Main10 profile@Level5.1 High-tier supported

Fully HD 3D video (MVC formats)

Maximum 4 channel HD decoding simultaneous supported

4Kx2K@60fps,10bit decoding supported

Support  H.264 4K*2K@30fps decoding

3D video processing and displaying supported

Support low latency vedio decoding

multi-channel decoding simultaneous

3D MVC Video

Support DRM middleware

Support  DRA decoding ?Dolby Digital/Dolby Digital Plus Decoder-Conv ?

DolbyTrue HD/DTS/DTS HD Core decoding; supported Dolby Digital/ DTS.

OS: Android 9.0 version

2.4G mouse and keyboard supported.

DLNA, MirCast,Airplay, G-MScreen supported.

Support weather forecast, show the weather information of the pre-set city

Google Search, Web browser, Email supported.

USB function?supported all kind of storage ,recording,playing and connecting all kind of USB  equipment

Working power consumption less than 10W?stand-by power consumption? less than 0.5W.

Support multimedia playing , visible communication,multi-screen transcoding and so on function

Multilingual menu supported

Blind search supported

Multi satellite search,network search,PID search, manual search and Multi-TP search

Fast Scan on Astra(19.2E 13.0E)
Quick setting and scan for satellite installation

DiSEqC 1.0/1.1/1.2/1.3(USALS)

Auto DiSEqC Search

Unicable Supported

Multi-language DVB Subtitle output

dvb subtitle

OTA and USB upgrade supported

Support multi-formats and resolution PAL  720*576 NTSC 720*480 720p 1080i 1080p

Support : picture dimension adjusting according screen size.


Standard?JPG,PNG

Front panel &Touch panel

Power light(RED)  +VFD&3 keys
Rear connnector

Dual S2 Tuner  in,SPDIF, earphone AV connector (left /right audio channel , compositive video),

DVB-S2

DVB-S / DVB-S2 Satellite Compliant (MPEG-II/ MPEG-IV/ H.264).

SCPC & MCPC receivable from Ku and C band satellites.

Input Frequency: 950~2150MHz

Input Level: -65~ -25dBm

LNB Polarisation:13V/18V/OFF

Universal, Single, Single S & C Band Wideband LNB.

Compatible Code Rates: 1/4, 1/3, 2/5,1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 and Automatic.

Symbol Rate: 2.0~45 MS/s.

Demodulation: QPSK, 8PSK, 16APSK, 32APSK

Reed-Solomon: 204, 188, t = 8

Roll Off Factor:0.35,0.25

ACM supported

Power

Working power consumption ?Less than 18W  ?stand-by power consumption? less than 0.5

Others
Input voltage ?12V 2A

perating temperature ?0 ? 40?

Size?180*130*60mm
